I2M Chrome Pro 2 Dashboard

The Chrome Pro 2 represents the maximum evolution of the Chrome system. Designed for those who want the most from their electronics, joins the features of the Chrome Plus with a new can bus system with acquisition of over 150 channels, integrated WiFi and Bluetooth connections, complete configurability and much more. Developed from the experience gained from the collaboration with Yamaha in the WSBK, it is now available for everyone.

Thanks to the use of a new dedicated hardware, the Chrome Pro 2 is able to read and acquire over 128 Can Bus channels that are alongside the 30 standard channels including speed, rpm, external analoguse, tire pressures and temperatures, GPS, gears, water oil ...The new hardware allows to make the acquisition of the channels fully configurable with a maximum frequency of 500Hz for each channel, thus reaching a total sampling frequency of over 65 kSample/s!Designed for the most demanding user, now the Chrome Pro 2 is not only able to connect to a WiFi network thanks to its integrated antenna, but can create a Wifi HotSpot itself. The connectivity then extends to the management of Polar H7 and H10 low energy heart bands and connectivity to PC and Mac not only via USB stick but also via a special configuration cable.Great attention has been paid to the total configurability of every aspect starting from the alarms, now all RGB, up to the possibility of creating non-linear sensors for each input.A new integrated wiring with a single IP67 connector and new adaptation cards complete the new experience related to the Chrome PRO 2.

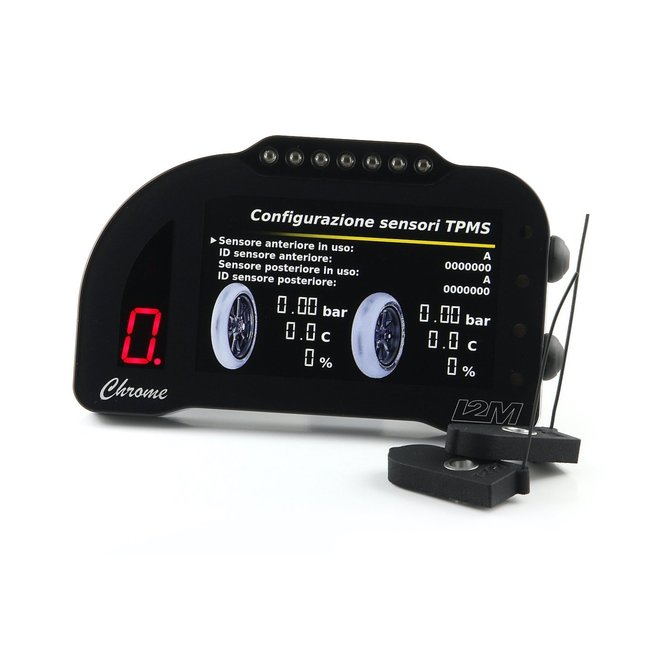

The Chrome PRO 2 has a 433MHz receiver inside that allows it to receive the signals of our TPMS sensors by storing up to 4 sensors for each wheel. It is therefore possible to always keep the pressure of both tires and the temperature of the rim monitored, so as to check correct heating with the tire warmers. The configurable alarms allow you to set the RGB LEDs to report any abnormal pressure and temperature values. Finally, the values are acquired so that they can be processed later. The Chrome PRO 2 is supplied complete with two TPMS sensors with relative adapters for 90-degree valves which can be requested in the 8.5 mm or 11.5 mm diameter format.

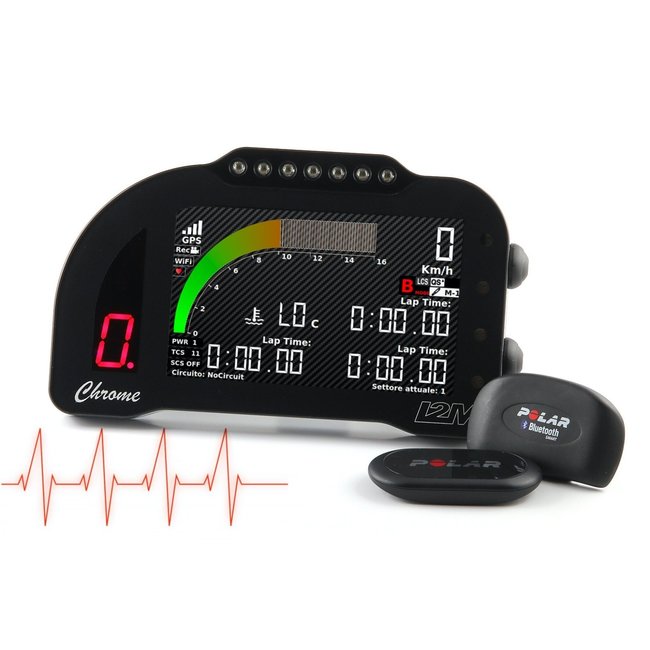

Thanks to the new integrated Bluetooth BLE receiver, it is possible to connect the Chrome PRO 2 to a Polar H7 or H10heart rate sensor. A heart-shaped icon on the screen will indicate the successful connection by making your heart beat on the screen in proportion to your heart rate. The data are then acquired in order to be subsequently reviewed so as to plan a correct physical training and targeted on the basis of personal physical effort.

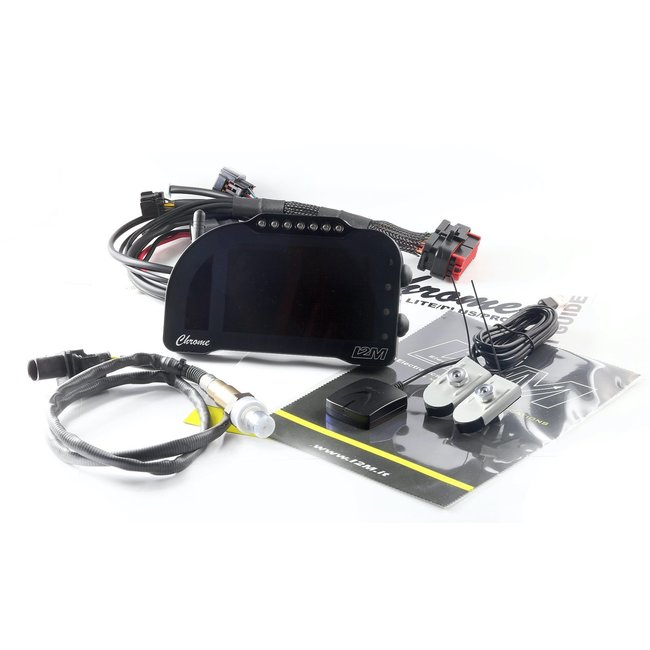

The Chrome Pro 2 comes in a package containing:

• Chrome Pro 2
• Antenna with 90 degree SMA joint for TPMS receiver
• GPS receiver
• Main wiring
• 2 TPMS receivers with adapters (optionally for 8.5mm or 11.5mm valves)
• Lambda sensor BOSH LSU 4.9
• Cleaning cloth

To install it you only need to choose the plug & play adapter for your motorcycle.

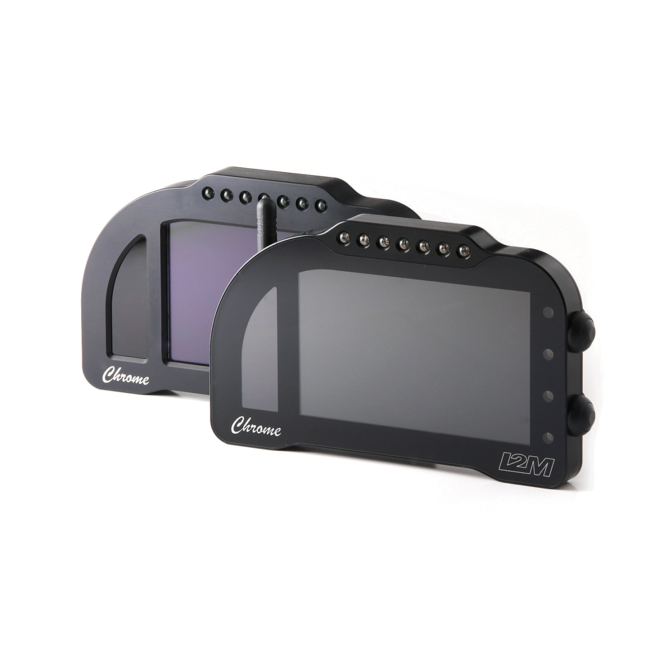

Compared to the previous generation, the new Chrome Pro 2 features a single front full plexiglass that protects the TFT display even better. The CNC machined aluminum case is now even thinner providing the housing for a new unique rear connector with IP67 protection.The appearance anticipates only some of the differences with previous models such as:

• Complete configurability of all the parameters of the bike even with totally custom Can Bus
• 128 additional can bus acquisition channels, each with sampling up to 500Hz
• Total sampling at over 65kSample / s
• 11 fully configurable RGB LEDs
• Configurable mechanical pages
• Integrated Wifi antenna
• Creation of Wifi Hotspot
• Integrated Bluetooth BLE antenna
• Possibility of cable configuration (with appropriate optional cable)
• New simplified adaptation cards
• Integrated recovery system
